Outdoor IP68 Waterproof Power Cable Connector F Shape LED Lighting Dustproof

Name: Outdoor IP68 Waterproof Power Cable Connector F Shape LED Lighting Dustproof
Brand: Jnicon
Price: 1 USD

Brand Name : Jnicon

Model Number : Waterproof Power Connectors

Certification : TUV/ UL/ CQC / CE / ROHS

Place of Origin : China

MOQ : 100 (10 Pairs of samples)

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000/days

Delivery Time : 3-5 working days

Packaging Details : 1.Plastic bag;2.Carton;3.As per customer's requirements

product details : 2 Pin Outdoor Waterproof Power Connector F Shape

number of Pin : 2 pin

Contact material : Copper alloy (Gold-plated)

Current rating : 10A

voltage rating : 300V

Waterproof level : IP68

Contact Now

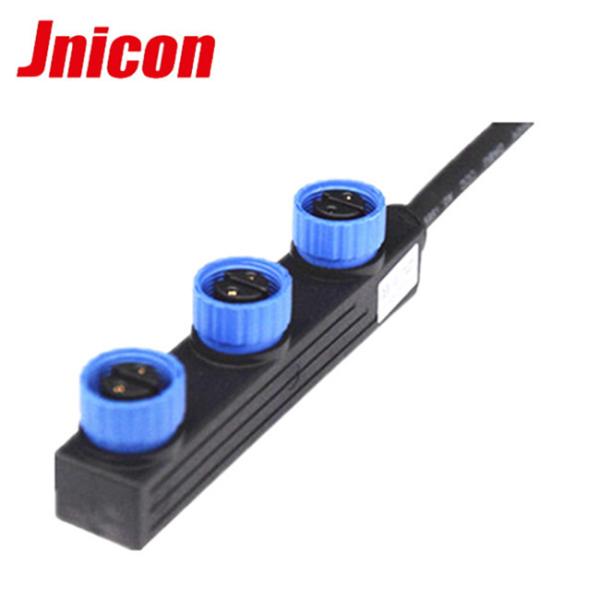

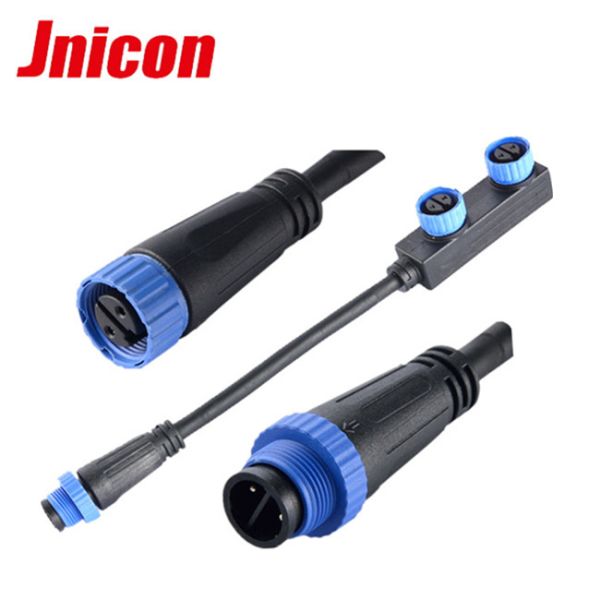

2 Pin Outdoor Waterproof Power Connector F Shape LED Lighting IP68

Description:

♦ 2 pin circular waterproof wire connector for cable welding

♦ IP68, waterproof and dust-proof.

♦ Withstanding voltage is 1500V, Voltage rating is 300V.

♦ Cable length and any products can customized.

♦ waterproof power connector, easy operation and installation

♦ dustproof cover design under off-working condition

♦ rated current is 10A rms

♦ protection level:IP68

Product Specification

Current rating(A)	10A
Operating voltage(AC.V.rms)	300V
Withstand voltage(AC.V)1min	1500V
Insulation resistance	>500MΩ
Durability	≥1500 mating&unmating cycles
Temperature rating	-40°C~105°C
Method of connecting cable	Solder
Prevent the combustion level	UL94-V0
Material
Shell&insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP68)
Vibration resistance,impact resistance,stretching resistance
push locking connect; socket with cover

Product dimension

Outdoor IP68 Waterproof Power Cable Connector F Shape LED Lighting Dustproof
